D-Flector Boat Stone Guards for Boat Trailers

D-Flector stone guard fitted to a boat trailer, shown from the side, rear quarter and bow of a trailered runabout

Boat stone guards protect the hull, gelcoat and painted aluminium of a trailered boat from the stone chips, gravel and road debris thrown up by your tow vehicle. Every chip is unsightly, lets corrosion start and knocks money off the resale value of the boat. Sea Raider is an authorised distributor of D-Flector, the patented, Australian-made boat trailer stone guard, and we can fit one to a new Sea Raider and trailer before delivery or supply one for the rig you already own.

The D-Flector Boat Stone Guard is a marine-grade 316 stainless steel frame fitted with heavy-duty, double-weave PVC mesh that hugs the bow of the boat and deflects stones safely to the ground. It bolts to your existing trailer with U-bolts in around 30 minutes, with no drilling, and comes in four sizes to suit boats from under 4.5m up to 8.5m.

Shop the D-Flector Boat Stone Guard

Covers and spare parts

Why D-Flector

Advanced Stone Chip Protection™

Heavy-duty, double-weave PVC mesh deflects stones and road debris downward instead of into the hull, and shields the underside of the boat from saltwater spray and dust. Broad YKK zipper panels on every model give you easy access to the bow, winch and anchor well without removing anything.

Quick, easy, drill-free installation

The guard bolts on with heavy-duty U-bolts in around 30 minutes. Nothing is drilled or cut, so your trailer’s integrity, finish and warranty are untouched.

Patented adjustable design

Adjustable brackets (AU patent 2018241136 B2, US 10913382 B2) tailor the guard to different boat widths and trailer geometries without any change to the trailer body. The centre bracket adjusts between 450mm and 600mm, and the top brace and rear sections adjust independently.

Extreme durability and reliability

Tested to Australian Design Rules (ADR 13/00, VSB 1, ADR 42) and to international standards for vibration (ISO 16750-3:2007), salt spray (ASTM B117), stone chip resistance (ASTM D3170) and thermal cycling (IEC 60068-2). The mesh is UV and weather resistant to ASTM D4329. Built for real boat-ramp and highway conditions, not the showroom.

Unique aerodynamic design

The modular frame, with heavy-duty joints and an adjustable design, fits all major boat and trailer brands. Its aerodynamic shape shields the boat while reducing drag for a smoother, quieter and more fuel-efficient tow.

Side-view dimension diagram of a D-Flector boat stone guard showing 1600mm width, 1040mm height and the zippered access panel above the trailer chassis

Front-view diagram of the D-Flector boat stone guard showing the adjustable rear, adjustable top brace and adjustable bracket with 450mm to 600mm centre spacing

Find the right fit for your boat

D-Flector Boat Stone Guards come in four sizes matched to boat length. The guard height should sit close to your boat’s gunnel height for the best protection, airflow and finish.

Model	Boat length	Width	Height	Best for
D400	Up to 4.5m	1600mm	1000mm	Compact boats and tinnies
D500	4.5m – 5.5m	1600mm	1100mm	All-round shield for mid-size trailer boats
D600	5.5m – 6.5m	2200mm	1200mm	Heavy-duty guard for plate boats such as the Sea Raider 6.25m range
D700	6.5m – 8.5m	2200mm	1300mm	Large offshore rigs: 6.85m, 7.5m, Boss 770, 7.9m Shark Cat

Which size suits a Sea Raider?

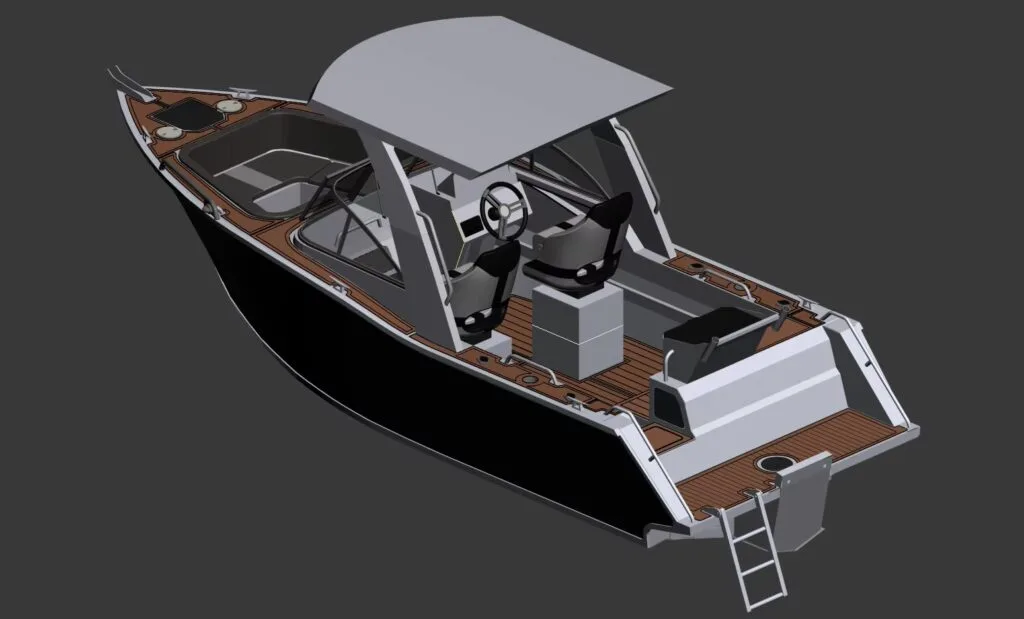

6.25m Centre Console, Pro Fisher, SportsCab and BowRider – D600
6.85m Walk Around, Centre Console and Pro Fisher – D700
7.5m Centre Console, Pro Fisher and SportsCab – D700

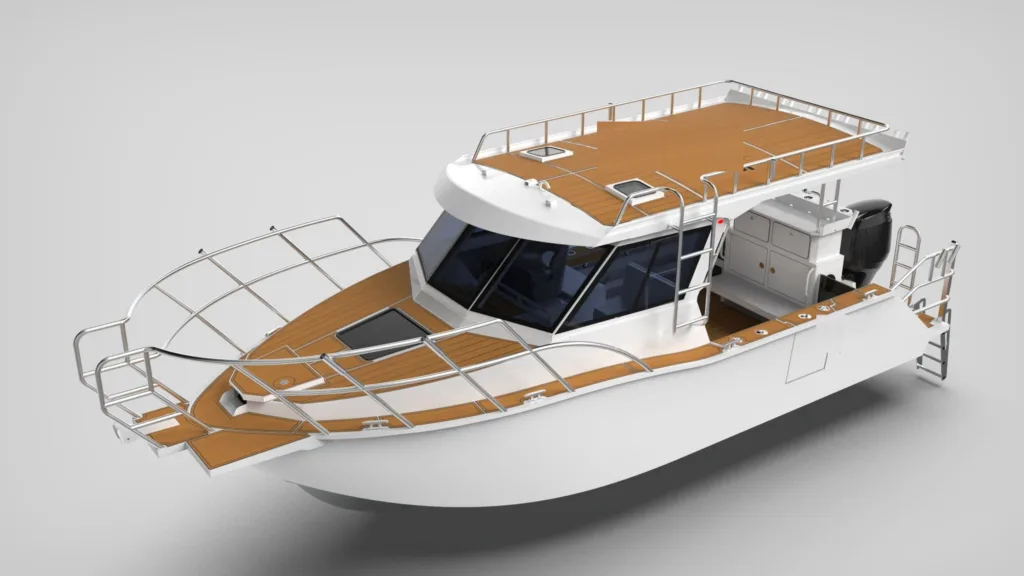

Boss 770 and 7.9m Shark Cat – D700

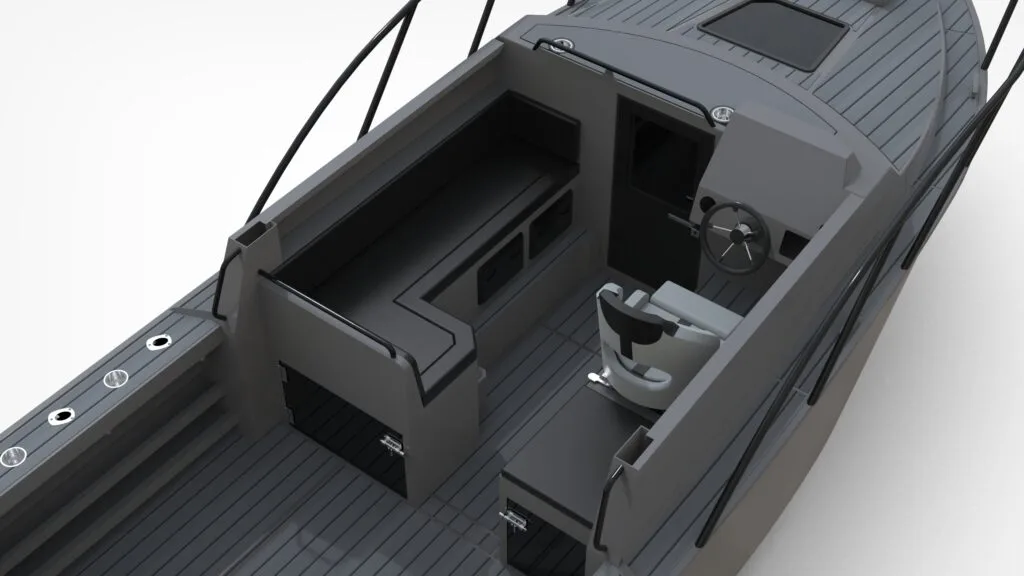

Boss 880, 8.8m and 10m Shark Cat, 9.6m Pro Fisher – longer than the D700’s 8.5m rating; call us and we will confirm a fit with D-Flector

Every guard ships complete: stainless steel frame with the mesh cover fitted, a full set of hook-and-loop bungee cords, and all the U-bolts and brackets needed for installation. Replacement mesh covers, bungee packs, U-bolt and bracket kits are all available separately, so the guard can be kept in new condition for years.

Built to a standard, not a price

Designed, developed and manufactured in Australia
Patented technology (AU 2018241136 B2, US 10913382 B2)
3-year warranty against defects in materials and workmanship
ISO 9001:2015 quality-managed manufacturing
Australian Made Awards winner 2023, 2024 and 2025
Best Advanced Stone Guard Protection Systems Manufacturer and Innovation Award in Caravan and Marine Protection, 2023, 2024 and 2025

D-Flector has been protecting boats, caravans, campers and jet skis on Australia’s toughest roads since 2007. Sea Raider stocks the boat range at Cleveland Marina, Brisbane, alongside our own galvanised and aluminium boat trailers, so the guard, trailer and hull can be matched before you tow away.

D-Flector Boat Stone Guard Range

Frequently asked questions

What size boat stone guard do I need?

It depends on your boat’s overall length: D400 for boats up to 4.5m, D500 for 4.5m to 5.5m, D600 for 5.5m to 6.5m and D700 for 6.5m to 8.5m. The guard height should sit close to your boat’s gunnel height for the best fit and finish.

Do I need to drill my boat trailer?

No. The D-Flector guard bolts straight onto your existing trailer using heavy-duty U-bolts, so the chassis is not drilled or cut.

How long does installation take?

A simple DIY install takes around 30 minutes. If you are buying a boat and trailer from Sea Raider, we can fit the guard before delivery.

Can I still access my boat with the stone guard fitted?

Yes. Broad YKK zippered panels give you easy access to the bow, winch and anchor well on every model.

Will a D-Flector fit my brand of trailer?

The modular, adjustable frame fits all major boat trailer brands, including Sea Raider galvanised and aluminium trailers. The centre bracket adjusts between 450mm and 600mm and the top brace and rear sections adjust independently.

What is covered under the warranty?

Defects in materials and workmanship for 3 years from the date of purchase, for the original owner.

Can I get spare parts if something wears out?

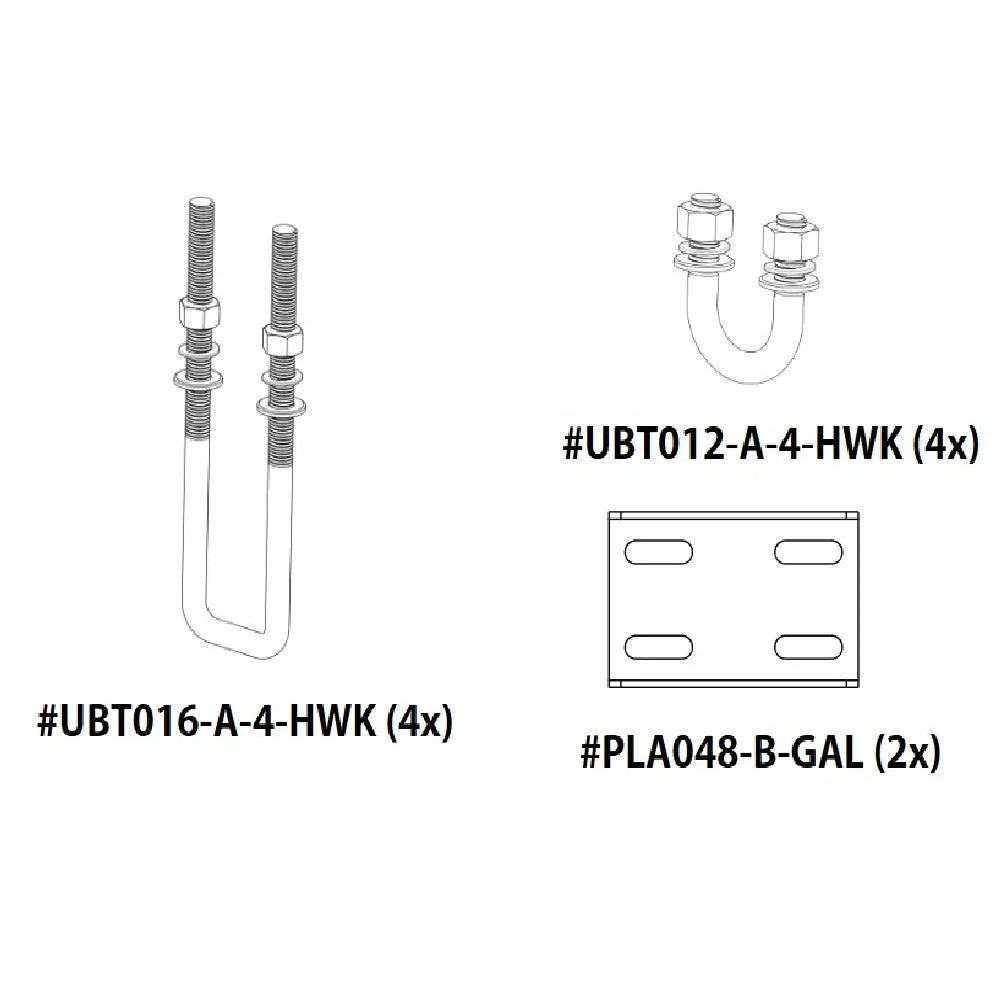

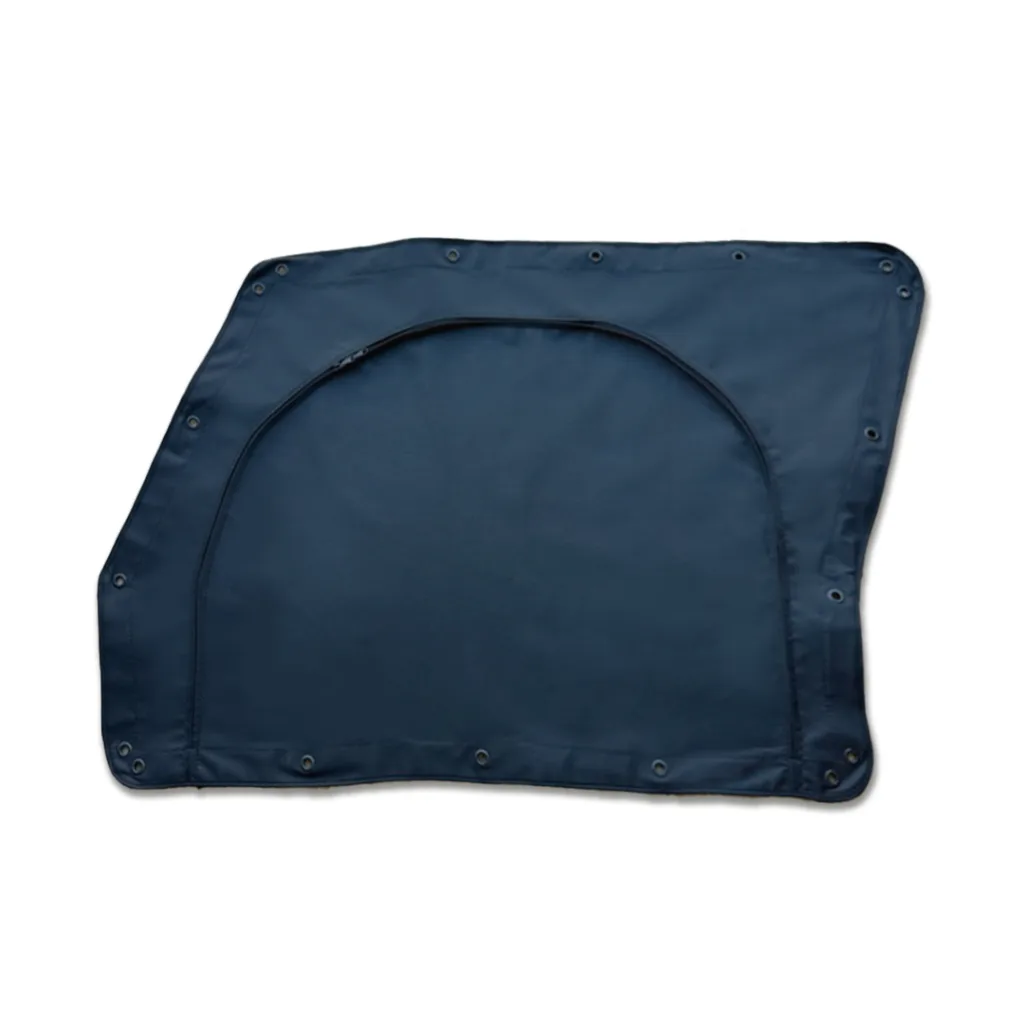

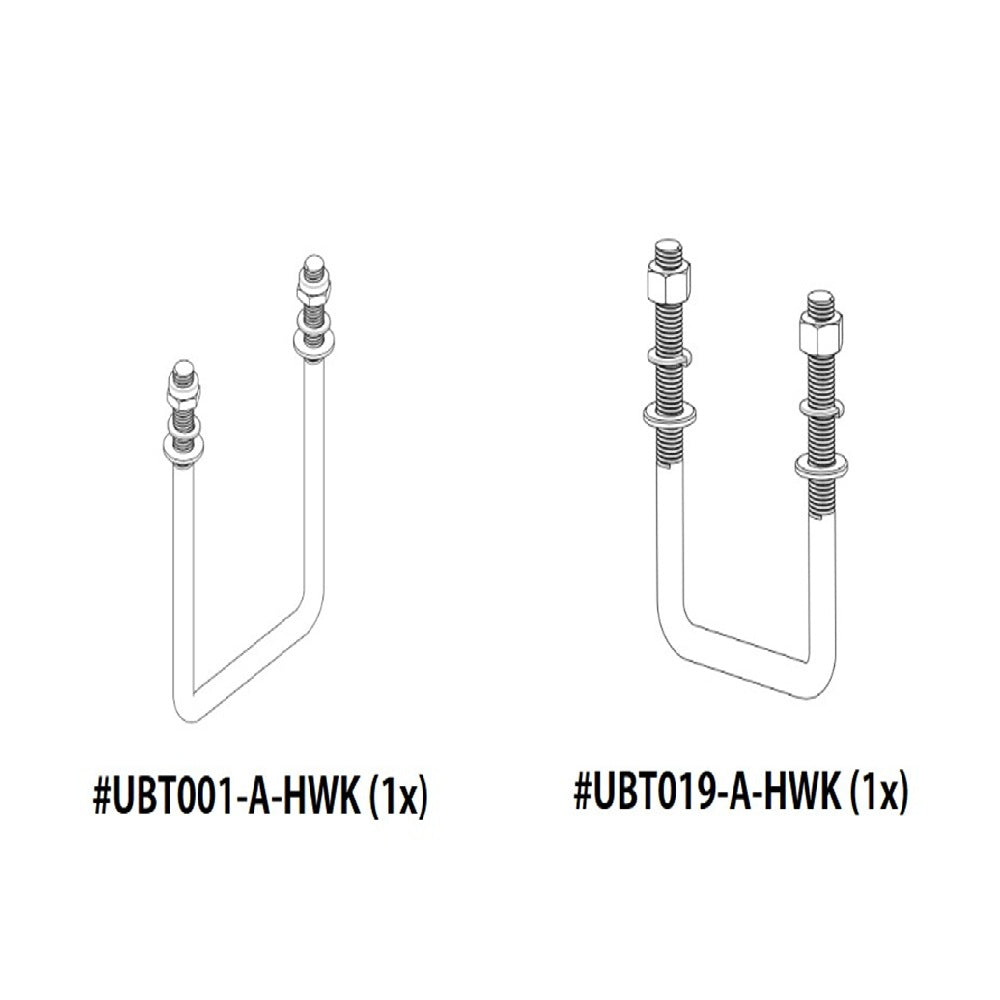

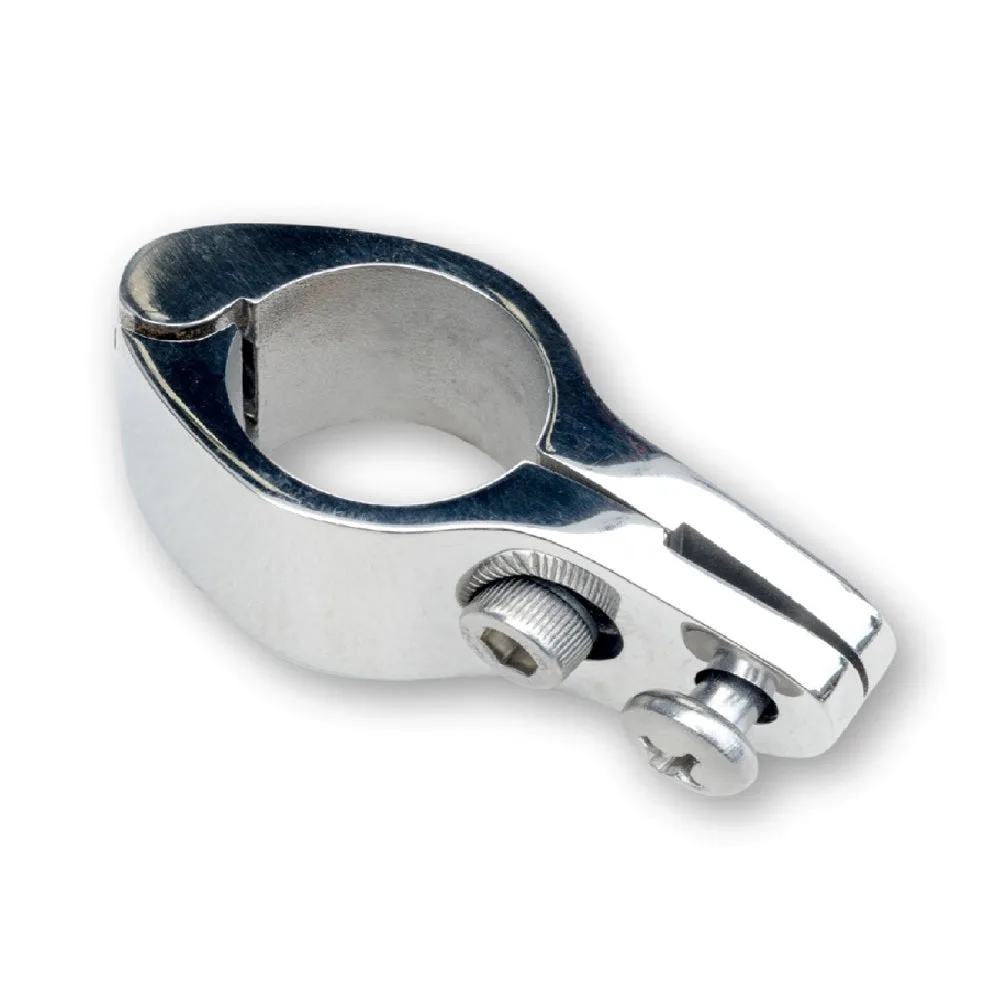

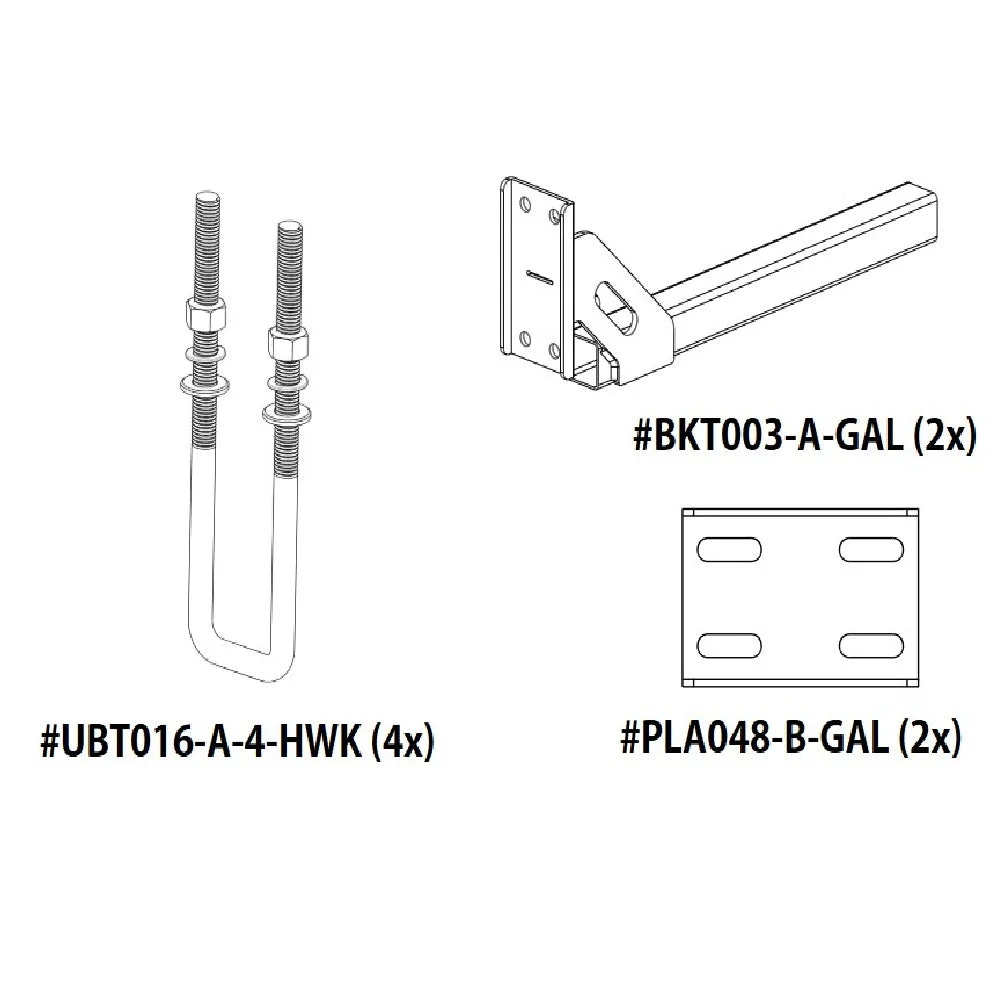

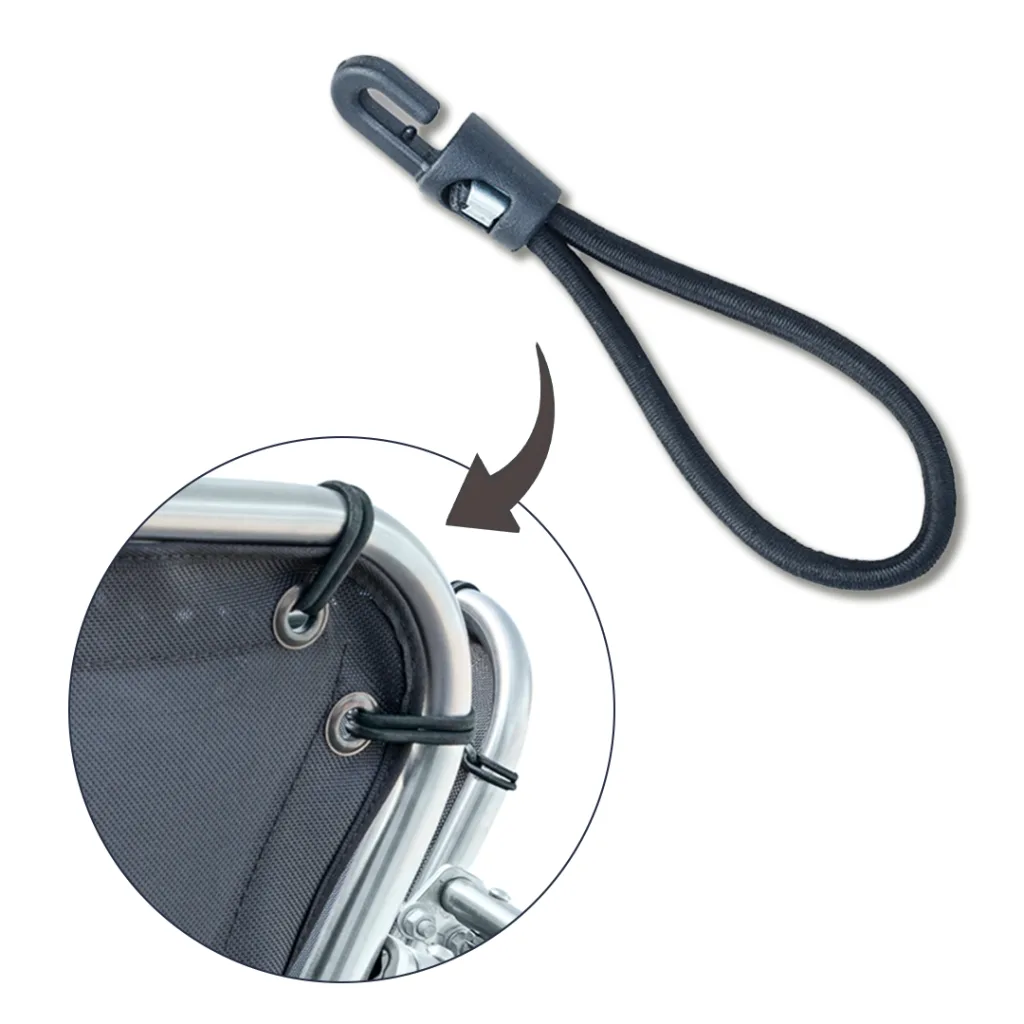

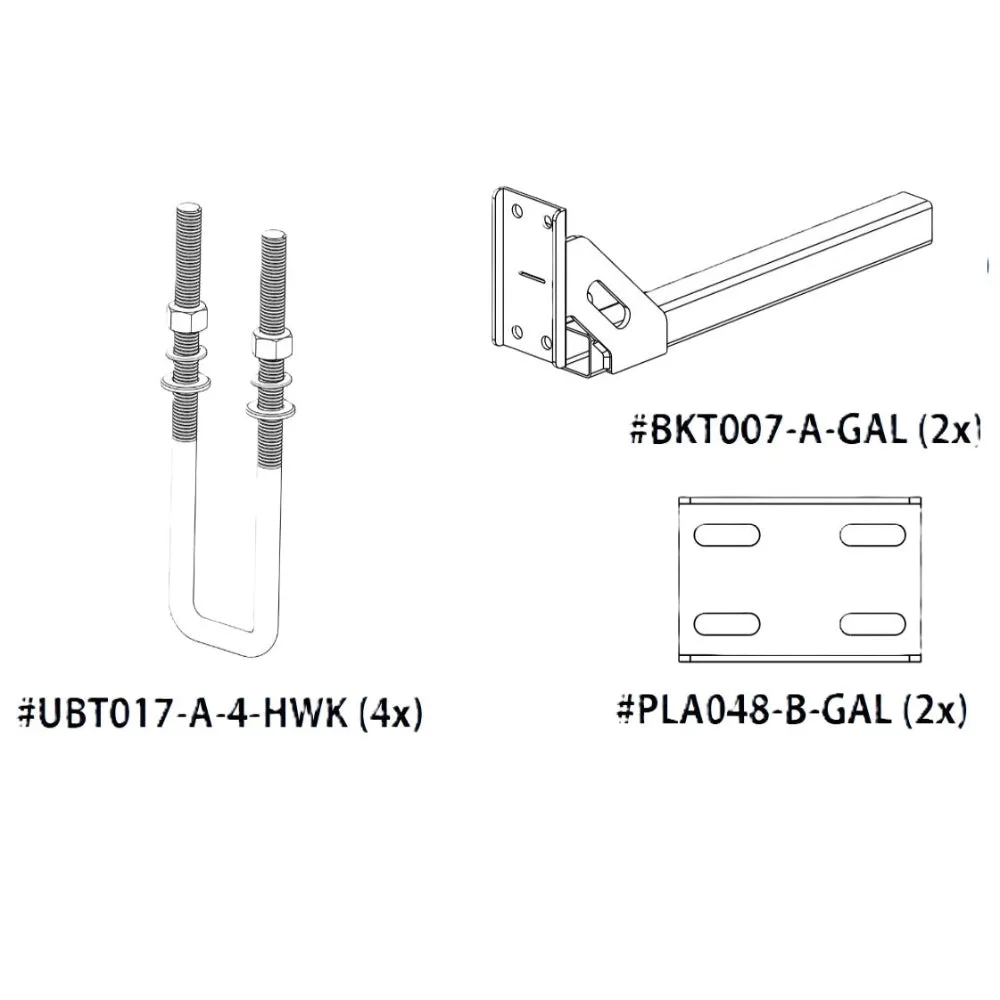

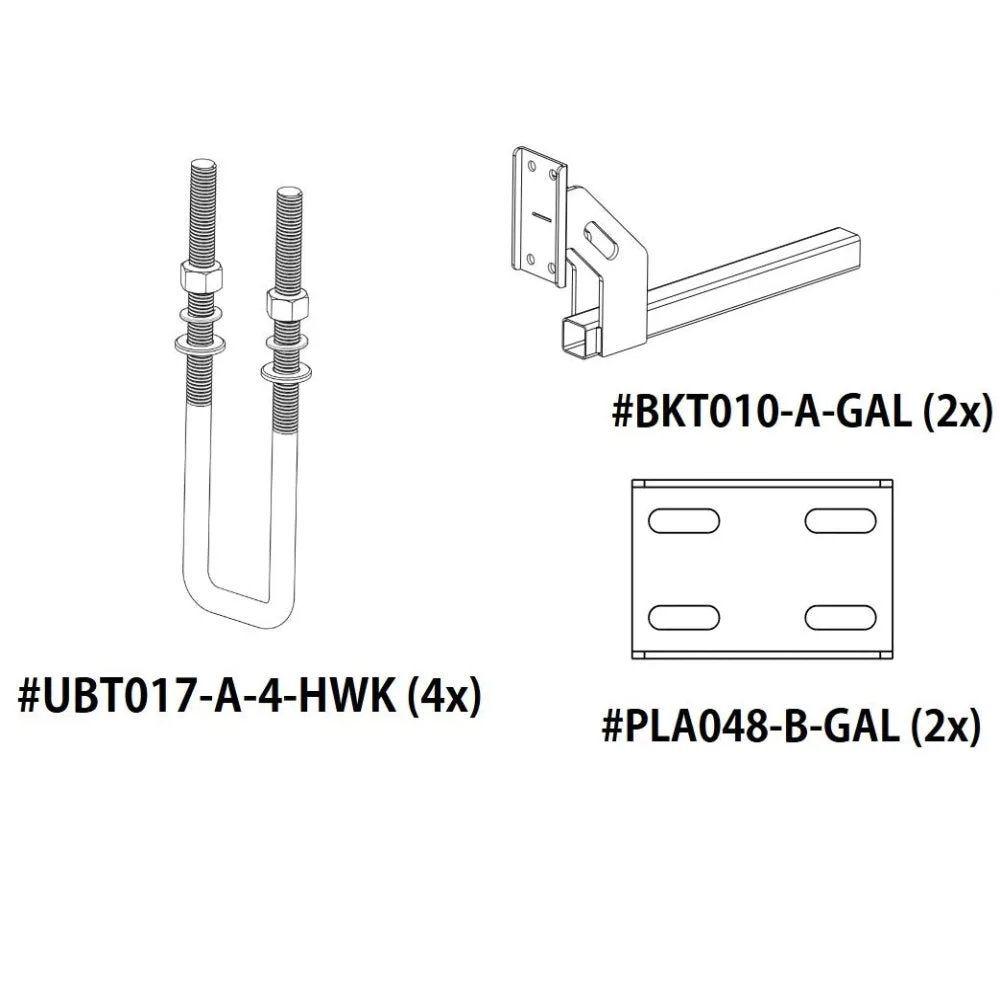

Yes. Replacement mesh covers for each size, hook-and-loop bungee cords, U-bolt kits, mounting bracket kits and the hinged jaw slide bracket are all available individually from Sea Raider.

Ready to protect your boat?

Order the D-Flector Boat Stone Guard in the size for your boat, or tell us your boat and trailer and we will confirm the fit. Enquire online or call the Sea Raider team at Cleveland Marina on 07 3477 9338.
