5.7M Galvanised Boat Trailer ATM 1400kg

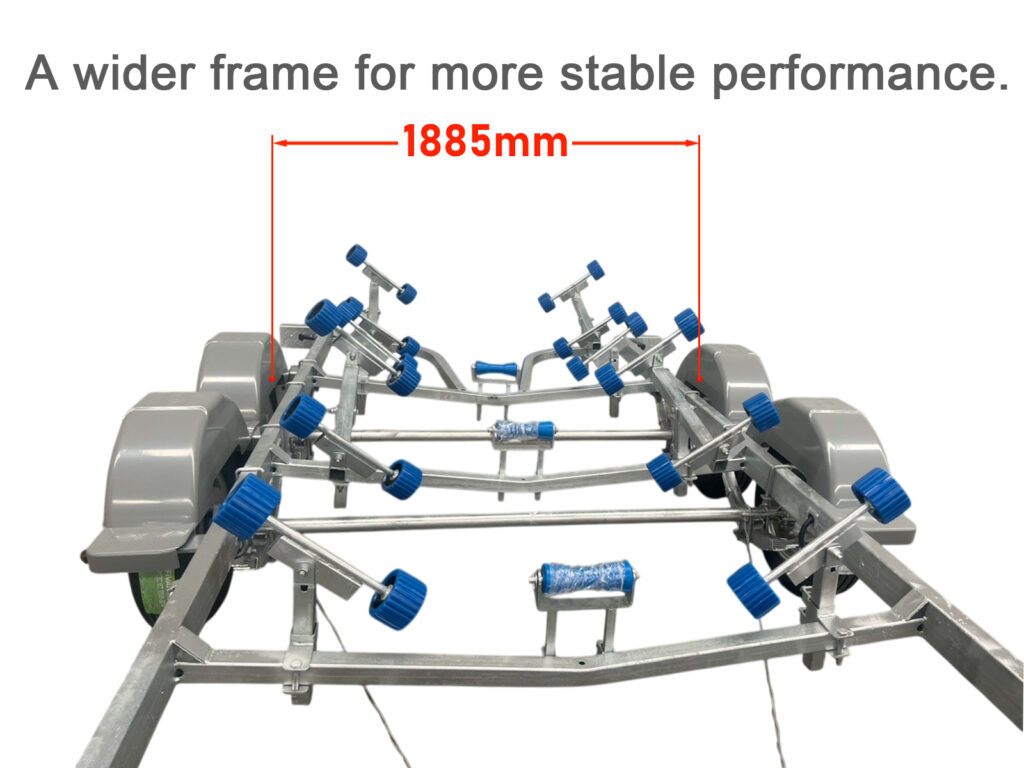

The 5.7m galvanised boat trailer with an ATM of 1400kg is built to get boats between 5.2m and 5.7m (17ft to 18.7ft) on and off the water safely, trip after trip. A fully hot-dip galvanised steel frame stands up to saltwater launching, the braked single axle gives heavier rigs the stopping power they need, and the wider frame keeps the load stable on the highway. It suits aluminium and fibreglass runabouts, side consoles and heavier boats that need braked single-axle support. Sea Raider stocks this trailer at Cleveland Marina, Brisbane, sets it up to your hull and can arrange Queensland registration and delivery from Brisbane.

Suits which boats

This is the single-axle trailer for 5.2m to 5.7m boats whose loaded weight – hull, engine, fuel, battery and gear – sits within the 1400kg ATM. If your rig is heavier, or you want two axles for long highway tows, the 5.7m galvanised tandem trailer with 2000kg ATM covers the same boat lengths. Tell us your boat’s length and weight and we will confirm which one is right.

Specifications

What’s included

• Fully hot-dip galvanised steel frame, braked single axle, ATM 1400kg
• Mechanical override brakes – no brake controller needed in the tow vehicle
• Heavy-duty tube side adjusters that let the roller or skid set-up be fine-tuned to your hull
• Adjustable winch post with hand winch
• Rollers or skids to suit your hull, set up at Cleveland Marina before collection
• 13-inch wheels with galvanised mudguards
• LED lights
• Hammerlock-connected safety chains and a swing-up jockey wheel

Options

• Queensland registration – ask for a price
• Spare wheel – ask for a price
• Skid or roller upgrades – ask for a price
• D-Flector D500 boat stone guard (boats 4.5m to 5.5m) – $1,799
• D-Flector D600 boat stone guard (boats 5.5m to 6.5m) – $2,189

The D-Flector guard bolts to the trailer with U-bolts in about 30 minutes, with no drilling, and we can fit it before the trailer leaves the yard.

Registration, delivery and finance

We can arrange Queensland registration for you – ask for a price. Interstate buyers register the trailer in their home state. Delivery is priced by state as transport from Brisbane: Queensland – collect from Cleveland Marina, or ask us about local delivery; NSW $2,500; ACT $2,000; VIC $3,000; NT $1,500; WA $4,500; TAS $4,500. South Australia is not listed – ask us for a quote. Low-cost finance is available on trailers – ask us when you enquire. Trailers over 750kg ATM need a current safety certificate when they are sold or transferred in Queensland. See the full boat trailer range for the other sizes.

Six trailers, every price published

Boat trailer range

4.8mGalvanised 750kg

From $2,195

Suits boats 4.3m–4.8m · ATM 750 kg

4.8mGalvanised 1200kg

From $2,795

Suits boats 4.3m–4.8m · ATM 1,200 kg · Override brakes

5.7mGalvanised 1400kg

From $3,583

Suits boats 5.2m–5.7m · ATM 1,400 kg · Override brakes

5.7mTandem 2000kg

From $4,974

Suits boats 5.2m–5.7m · ATM 2,000 kg · Tandem axle

6.9mAluminium

From $12,000

Suits boats up to around 21ft (about 6.4m) · Rated to 1,550 kg · Dual axle

8.2mAluminium

From $15,000

Suits boats up to around 8m · ATM 3,490 kg · Dual axle

Frequently asked questions

Not sure which trailer suits your boat? Tell us the boat’s length and weight and we will confirm the fit and set the trailer up to your hull before you tow away. Enquire online or call Sea Raider at Cleveland Marina, Brisbane, on 07 3477 9338.
