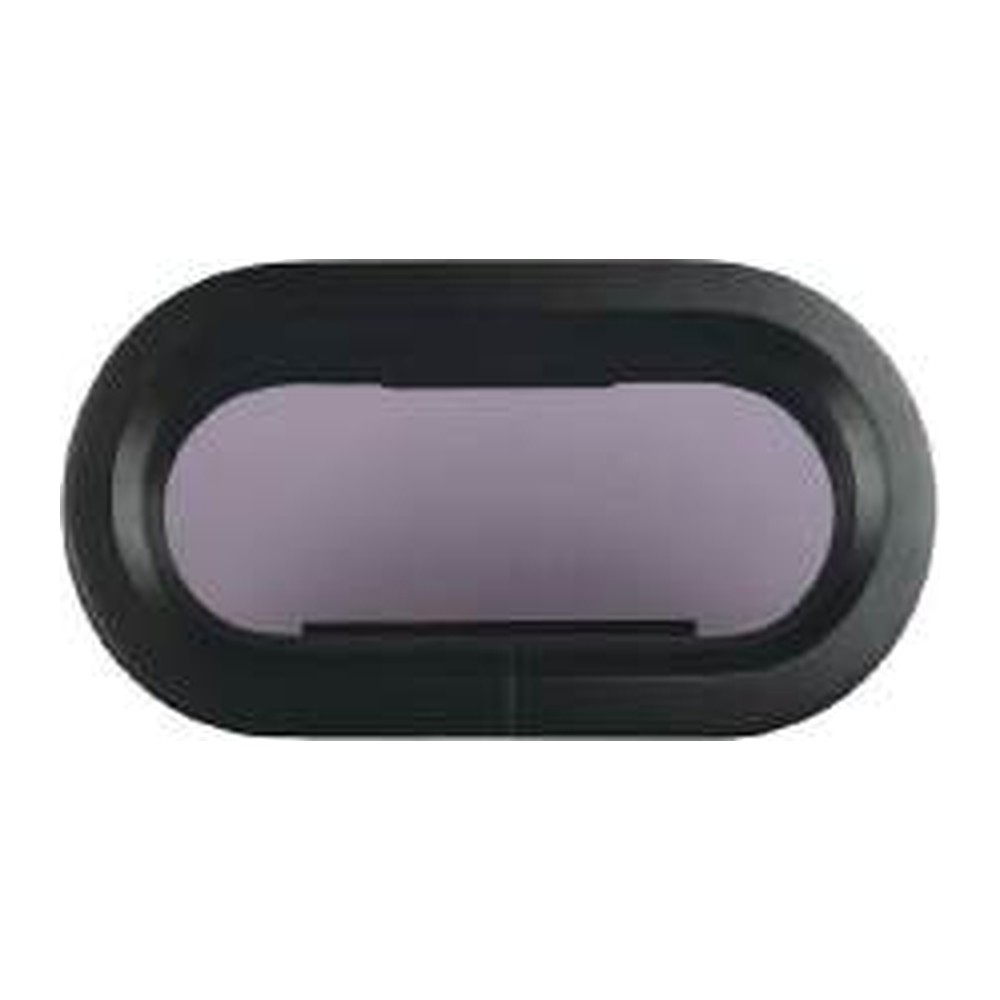

Flagship Opening Portlight

The flagship opening portlight brings natural light and airflow into the cabin without compromising the strength of your aluminium plate boat. Built from anodised aluminium and fitted with a smoked tempered glass lens, it’s CE approved and finished in black to suit most cabin builds.

Built for easy, secure operation

Built-in friction levers give quick, safe locking, so the portlight stays exactly where you set it, whether cracked open for ventilation at anchor or dogged down tight offshore. Fitting is straightforward: the inner and outer frames clamp either side of the cabin wall, with the supplied screws fastened through the outer frame to hold it firm. Mounting screws and a flyscreen can be supplied separately – just mention it when you enquire.

Specifications

• XK9504AA00 – cut-out 175 x 375mm, external 197 x 397mm, deck thickness 31mm, 1.98kg
• XK9504AA01 – cut-out 175 x 345mm, external 197 x 367mm, deck thickness 31mm, 1.83kg
• Total height 44mm, single friction handle, black anodised finish

Fitting out a cabin or refitting an older hull? Enquire online or call our Cleveland Marina team on 07 3477 9338 to check sizing before you order.
